NUMBER/LICENSE PLATE LAMP ASSEMBLY AND BULB

86

ELECTRICAL

14

REPAIR

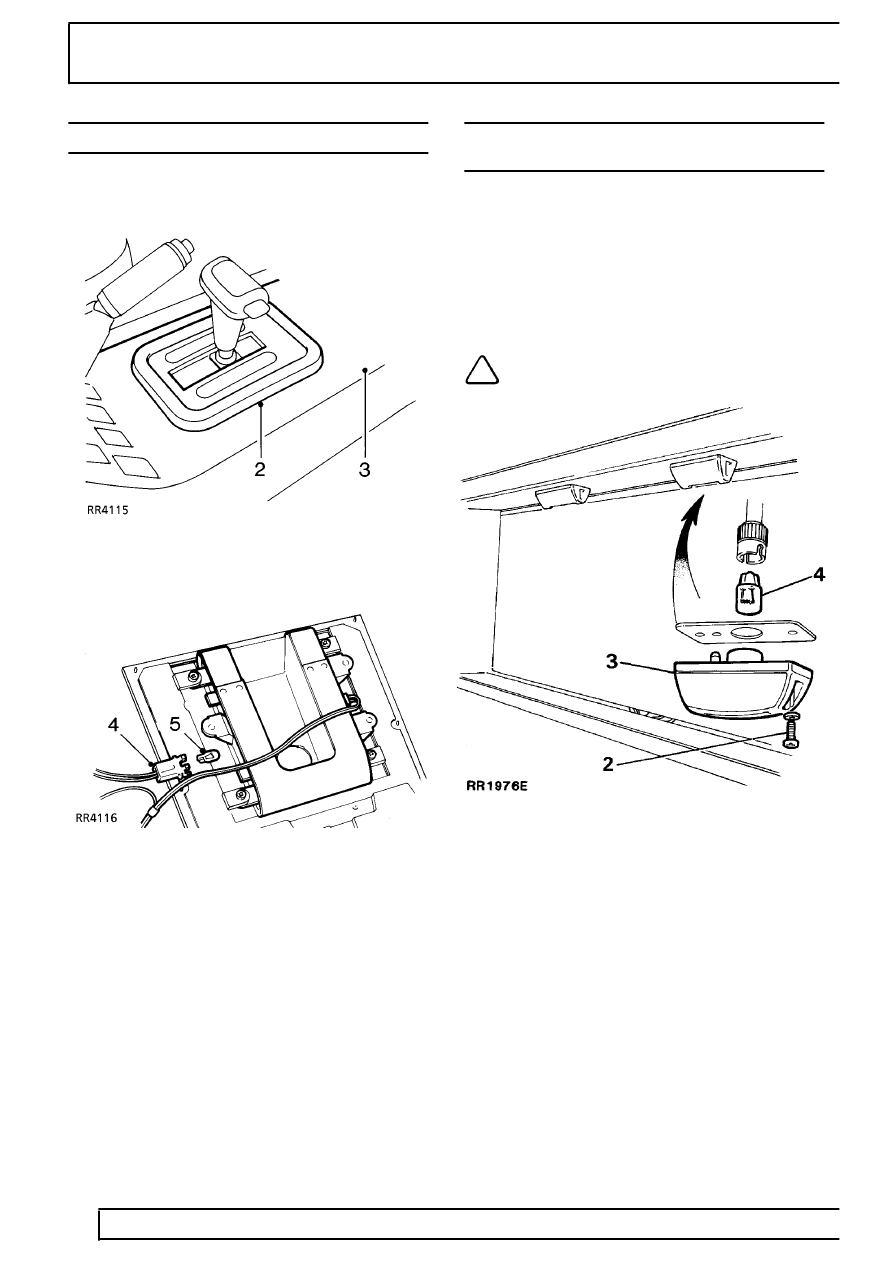

AUTOMATIC GEAR SELECTOR-PANEL BULB

Service repair no - 86.45.40

1. Disconnect battery negative lead.

2. Carefully prise quadrant finisher out of surround.
3. Carefully prise rear of surround away from

centre console.

4. Pull appropriate bulb holder from fitted position.
5. Remove bulb from holder.

Refit

6. Reverse removal procedure.

NUMBER/LICENSE PLATE LAMP ASSEMBLY AND
BULB

Service repair no - 86.40.86

Remove

1. Disconnect battery negative lead.
2. Remove two self-tapping screws with washers.
3. Remove lamp assembly.
4. Disconnect bulb holder, remove bulb.

NOTE: Carefully pull electrical leads out of
bottom of lower tailgate panel to reveal
snap connectors.

5. Disconnect electrical connections located at

bottom of lower tailgate.

6. Remove bulb holder.
7. Carefully pull electrical leads up through inside

of lower tailgate panels.

Refit

8. Reverse removal procedure.
