CIGAR LIGHTER AND BULB

ELECTRICAL

21

REPAIR

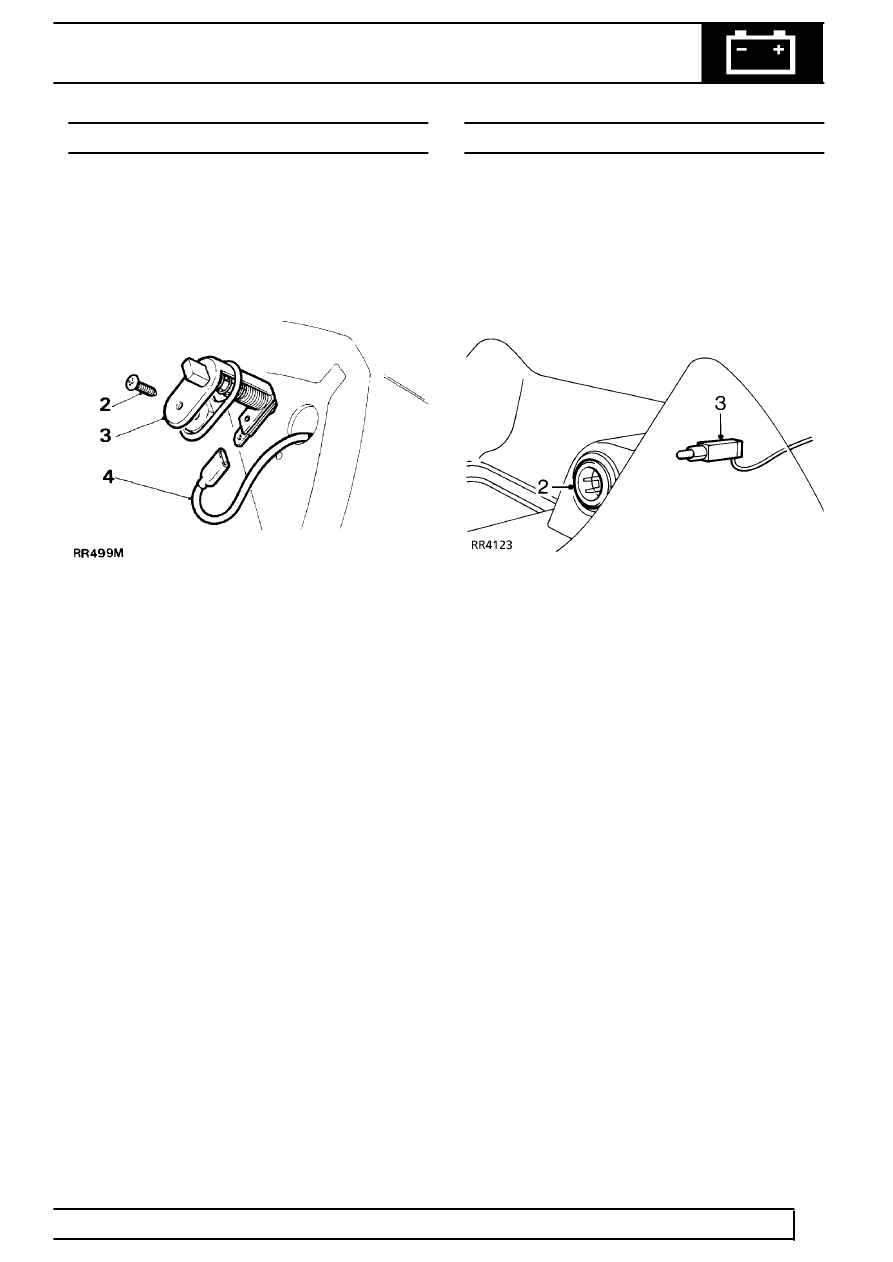

UNDER BONNET/HOOD ILLUMINATION SWITCH

Service repair no - 86.65.23

Remove

1. Disconnect battery negative lead.
2. Remove single screw securing switch to decker

panel.

3. Withdraw switch.
4. Disconnect electrical lead.

Refit

5. Reverse removal procedure.

CIGAR LIGHTER AND BULB

Service repair no - 86.65.60 - Cigar lighter
Service repair no - 86.45.55 - Bulb

Cigar lighter

Remove

1. Remove centre console.

See CHASSIS AND

BODY, Repair, Centre Console

2. Depress lugs securing cigar lighter, withdraw

lighter from centre console.

Bulb replacement

3. Remove bulb from holder.

Refit

4. Reverse removal procedure.
