AIR SUSPENSION SWITCHES AND BULBS

ELECTRICAL

17

REPAIR

AIR SUSPENSION SWITCHES AND BULBS

Service repair no - 86.65.88 - Switches
Service repair no - 86.45.29 - Bulbs

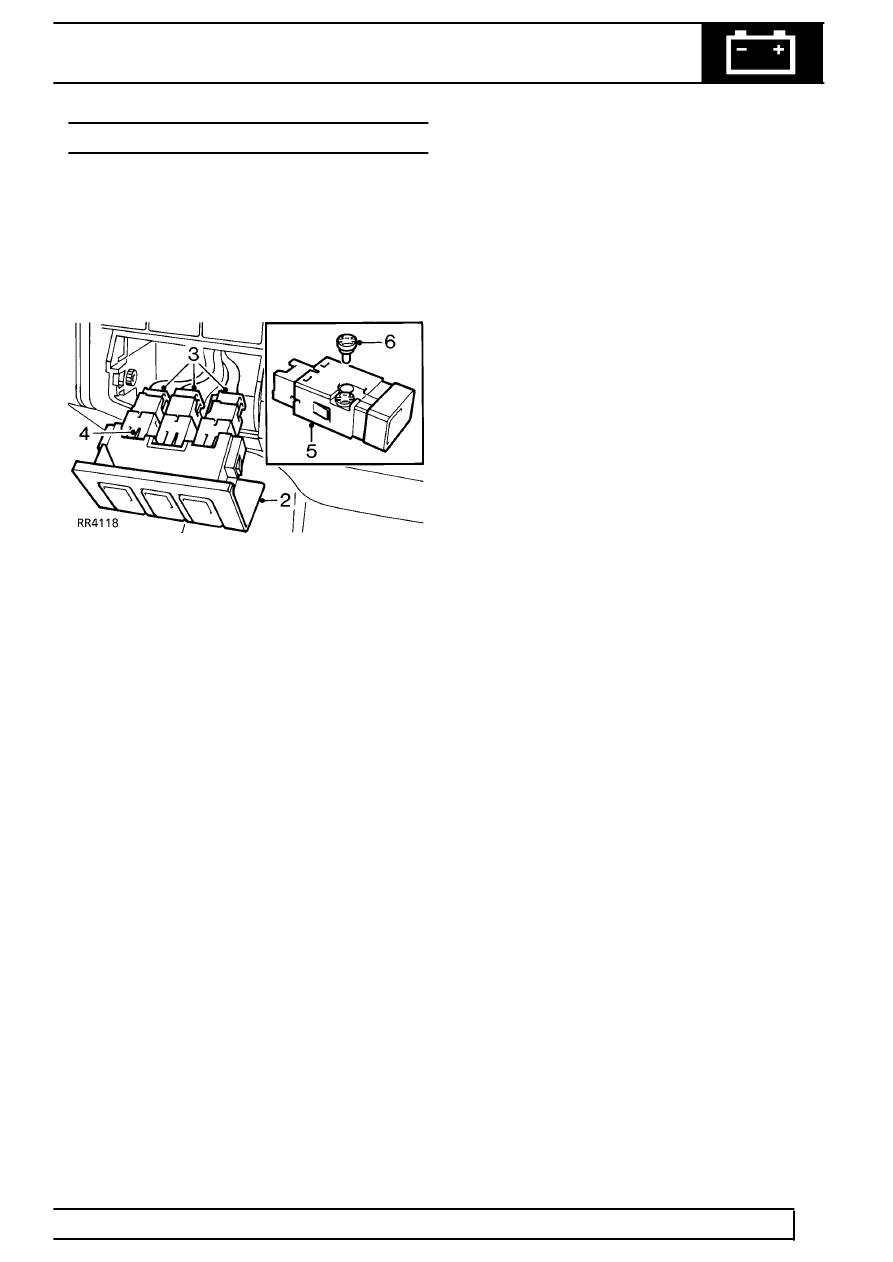

Switch replacement

Remove

1. Disconnect battery negative lead.

2. Carefully release lower edge of panel from

surround, withdraw panel.

3. Noting their fitted positions, disconnect

multiplugs from switches.

4. Depress retaining lugs on switches, remove

switches from panel.

Bulb replacement

5. Identify bulb to be replaced and remove

appropriate switch.

6. Rotate bulb holder 90 deg. and withdraw it from

switch.

Refit

7. Reverse removal procedure.
