86 - ELECTRICAL (ALARM COMPONENTS): DESCRIPTION AND OPERATION
- Make
- Land Rover
- Model
- Range Rover Classic
- Section
- DESCRIPTION AND OPERATION › ALARM COMPONENTS
86 - ELECTRICALALARM COMPONENTS · page 1 of 2
ELECTRICAL
3
DESCRIPTION AND OPERATION
ALARM COMPONENTS

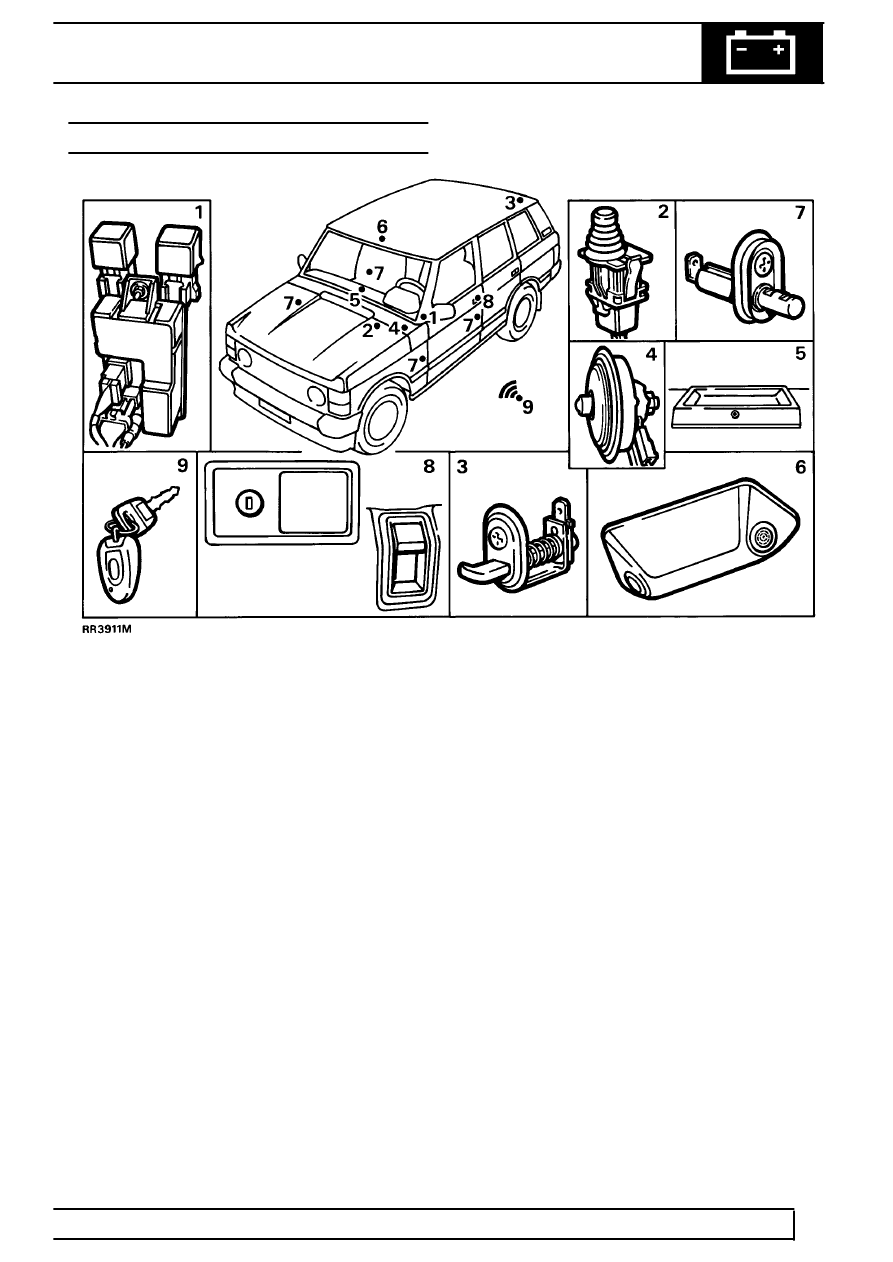

1. Electronic control unit (ECU) and relays
2. Bonnet [hood] switch
3. Tailgate switch
4. Alarm horn
5. Light emitting diode (LED)
6. Ultrasonic unit
7. Door switches
8. Lock barrel, sill buttons
9. Handset transmitter (two supplied)
