BRAKE PIPE LAYOUT - RHD (70 - BRAKES - NON ABS)
- Make
- Land Rover
- Model
- Range Rover Classic
- Section
- DESCRIPTION AND OPERATION › BRAKE PIPE LAYOUT - RHD
70 - BRAKES - NON ABSBRAKE PIPE LAYOUT - RHD
BRAKES
7
DESCRIPTION AND OPERATION
BRAKE PIPE LAYOUT
Right hand drive

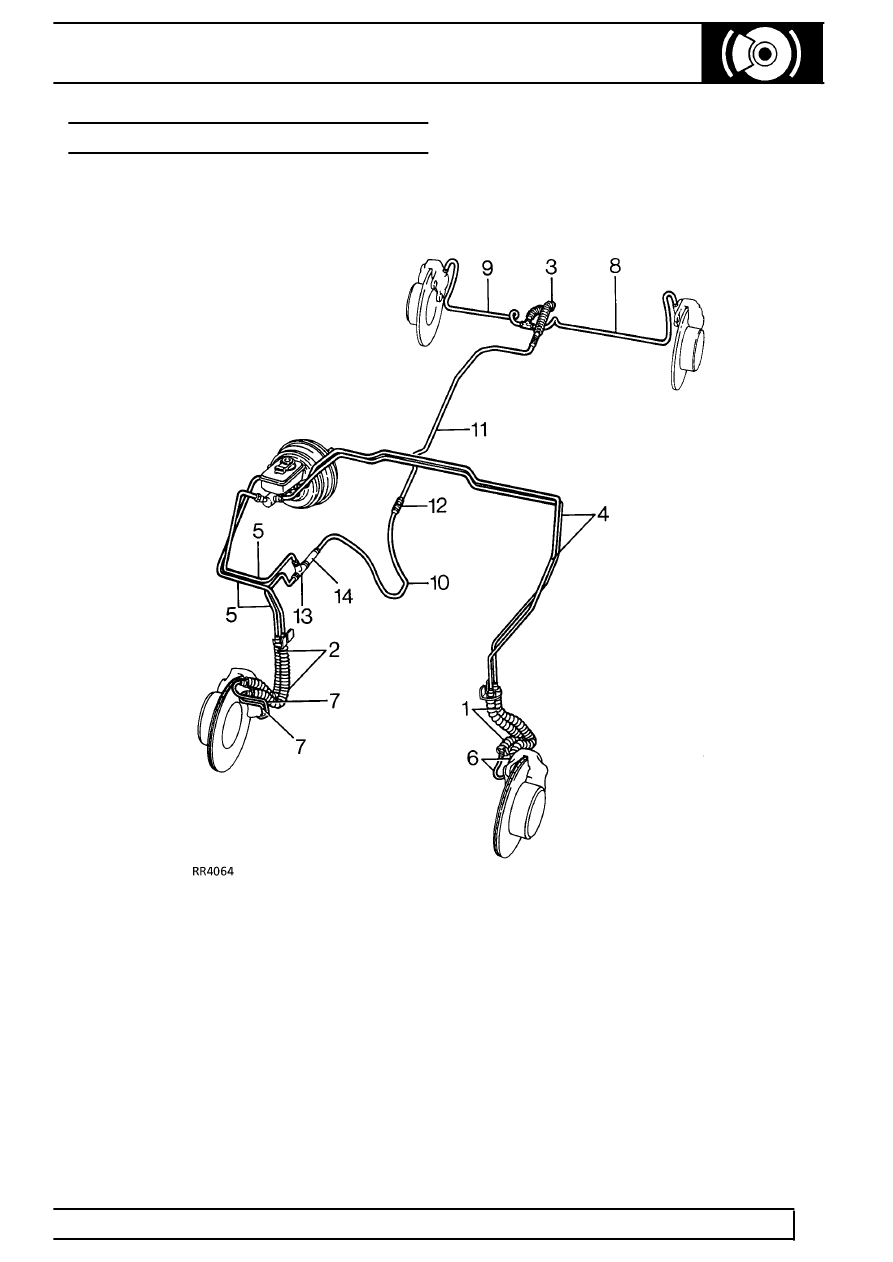

PIPES
4. Feed to front LH hose connector.
5. Feed to front RH hose connector.
6. Feed to front LH caliper.
7. Feed to front RH caliper.
8. Feed to rear LH caliper.
9. Feed to rear RH caliper.
10. Feed to two way connector.
11. Feed to intermediate hose.
12. Two way connector.
13. Three way connector.
14. Pressure reducing valve.
