Vehicle electricsAlternator
Removing and installing alternator - vehicles with 1.8 ltr. and 2.0 ltr. TFSI engine

Removing
–  With ignition switched off, disconnect earth cable at battery → Chapter.
–  Remove poly V-belt from alternator pulley and release tensioner → Rep. gr.13.

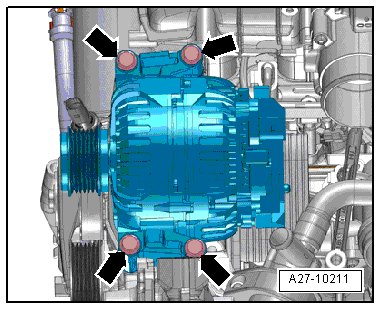

–  Unscrew bolts -arrows- and swivel alternator forwards.
  A27-10211

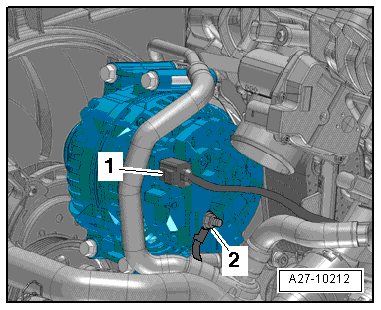

–  Unplug electrical connector -1-.
–  Unscrew terminal 30/B+ -item 2-.
–  Take out alternator.
Installing
l  Tightening torques → Chapter
Installation is carried out in the reverse order; note the following:
–  Install poly V-belt → Rep. gr.13.
–  Connect battery. Steps required → Anchor.
–  Start engine and check that poly V-belt runs properly.
  A27-10212
