Rear final drive identification (Rear final drive 0BC)

Make

Audi

Model

A5

Section

Rear final drive 0BC › Technical data › Rear final drive identification

Power transmissionRear final drive identification

Rear final drive identification The rear final drive 0BC is installed in conjunction with the following gearbox types: t  6-speed manual gearbox 0B2, four-wheel drive t  6-speed manual gearbox 0B4, four-wheel drive t  7-speed dual clutch gearbox 0B5, four-wheel drive t  Automatic gearbox 0B6, four-wheel drive t  8-speed automatic gearbox 0BK, four-wheel drive t  8-speed automatic gearbox 0BW, four-wheel drive (Q5 hybrid only) Rear final drive allocation t  → Chapter „Audi A4 2008 ► - Code letters, allocation, transmission ratios, capacities“ t  → Chapter „Audi A5 Coupé 2008 ► - Code letters, allocation, transmission ratios, capacities“ t  → Chapter „Audi A5 Cabriolet 2009 ► - Code letters, allocation, transmission ratios, capacities“ t  → Chapter „Audi Q5 2008 ► - Code letters, allocation, transmission ratios, capacities“ t  → Chapter „Audi Q5 hybrid 2008 ► - Code letters, allocation, transmission ratios, capacities“ t  → Chapter „Audi A6 2011 ► - Code letters, allocation, transmission ratios, capacities“ t  → Chapter „Audi A7 2011 ► - Code letters, allocation, transmission ratios, capacities“ t  → Chapter „Audi A8 2010 ► - Code letters, allocation, transmission ratios, capacities“

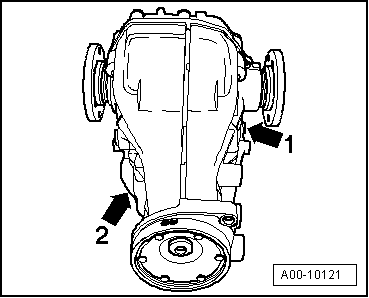

Location on rear final drive Final drive 0BC -arrow 1- and 0AR Code letters and date of manufacture -arrow 2-

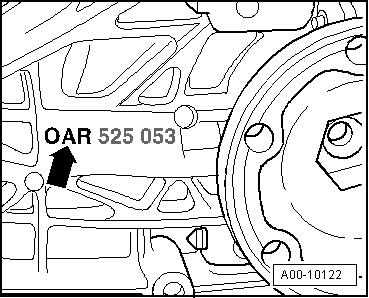

Final drive 0BC -arrow- and 0AR   Note t  The designation „0AR“ always appears on the rear final drive housing. The distinguishing features for final drives „0BC“ and „0AR“ are housing modifications.

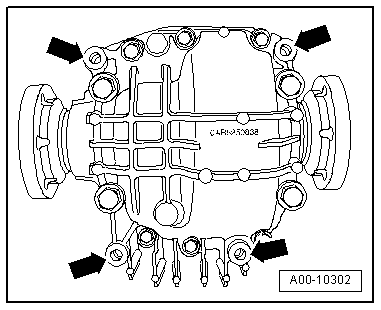

t  An additional distinguishing feature is the position of the tapped holes -arrows- used to secure the cross member to the rear final drive. t  On the final drive unit „0BC“ there are 4 tapped holes -arrows- in the final drive housing for securing the cross member. There is also an additional tapped hole below the propshaft flange, for securing the final drive to the subframe.

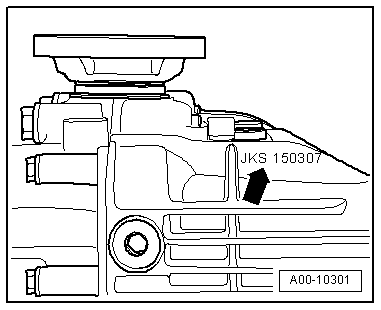

Code letters and date of manufacture for rear final drive

Example:	JKS	15	03	07
	I	I	I	I
	Code letters	Day	Month	Year -2007- of manufacture

Other information can be disregarded.   Note When installing a new rear final drive unit, it is important to verify not only the code letters but also the PR No. and the engine code of the vehicle in the → Electronic parts catalogue. This is necessary to ensure that the correct version is installed.
