Power transmissionTransmission layout

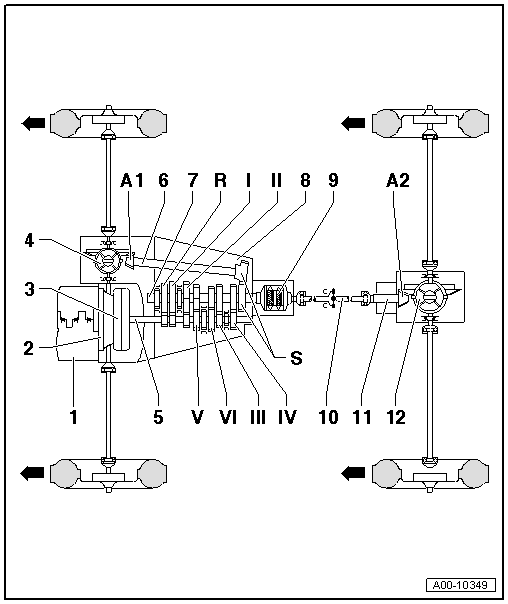

Transmission layout t  Illustrated with 6-speed manual gearbox 0B4, four-wheel drive

  Note

-Arrows- point in direction of travel.

1 -

Engine

2 -	Drive plate

q	With needle bearing for gearbox input shaft

3 -	Clutch module

q	Consists of pressure plate, clutch plate and dual-mass flywheel with flange for drive plate

4 -	Front differential

5 -	Input shaft (main shaft)

6 -	Front pinion shaft (side shaft)

7 -	Output shaft

8 -	Manual gearbox

9 -	Centre differential

10 -

Propshaft

11 -	Rear pinion shaft

12 -	Rear differential

I -

1st gear

II -

2nd gear

III -

3rd gear

IV -

4th gear

V -

5th gear

VI -

6th gear

R -	Reverse gear

S -	Spur gears (intermediate drive)

A1 -	Front final drive

A2 -	Rear final drive
