J37 Additional heater relay - 2
- Make
- Alfa Romeo
- Model
- 156 Factory Service Manual
- Year
- 1997–2002
- Section
- Relays › J37 Additional heater relay - 2

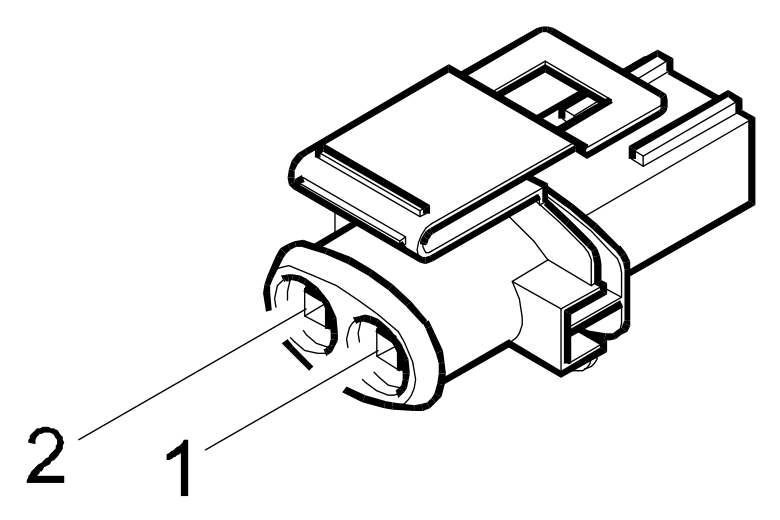

Connectors and pin-outsJ37 Additional heater relay - 2
J37 Additional heater relay - 2
Connector J37 – abs harness (black) – Euro3
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 30 | 6.0 | R | red | A1D pin - J36 pin 30 |
| 85 | AR | light blue/red | J36 pin 85 J38 pin 87a | |
| 86 | C | orange | D22 pin 4 | |
| 87 | 6.0 | M | brown | O25B O25C |
Connector J37 – front harness (black) – up to 2/99
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 30 | 6.0 | R | red | B38 pin - J36 pin 30 |
| 85 | AR | light blue/red | J36 pin 85 J38 pin 87a | |
| 86 | C | orange | D22 pin 4 | |
| 87 | 6.0 | M | brown | O25B O25C |
Wiring diagrams
