H70 Alarm switch

Make

Alfa Romeo

Model

156 Factory Service Manual

Year

1997–2002

Section

Manual electric controls › H70 Alarm switch

Connectors and pin-outsH70 Alarm switch

H70 Alarm switch

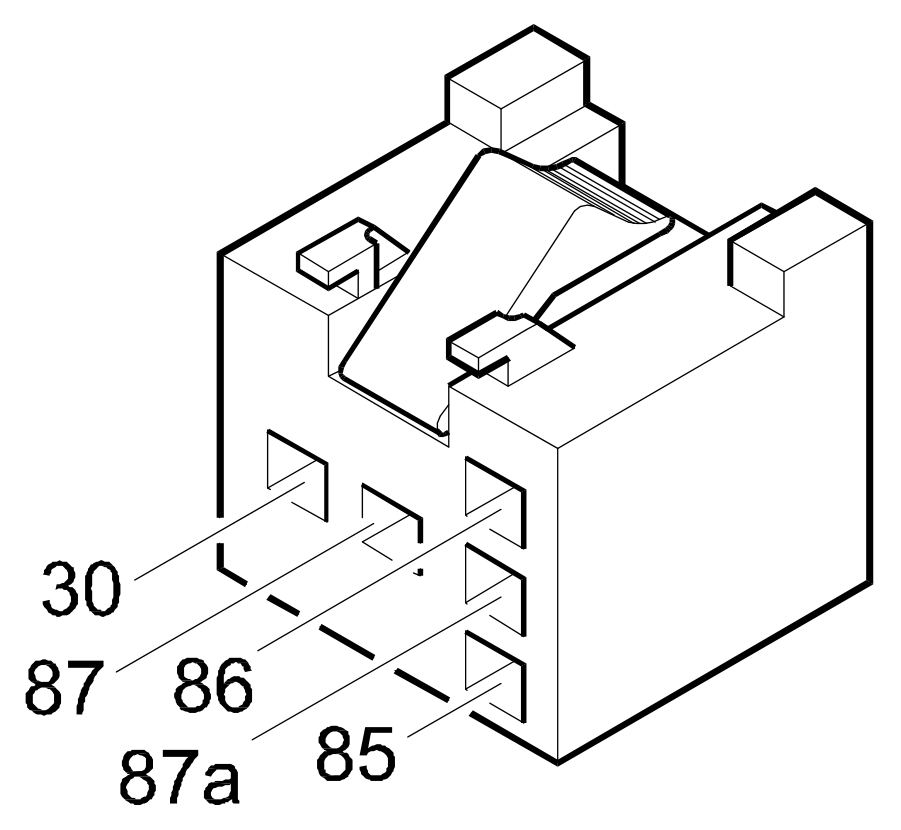

Connector H70A – front harness (grey)

Pin	mm²	Colour		To
2	1.5	H	grey	M30B pin 13

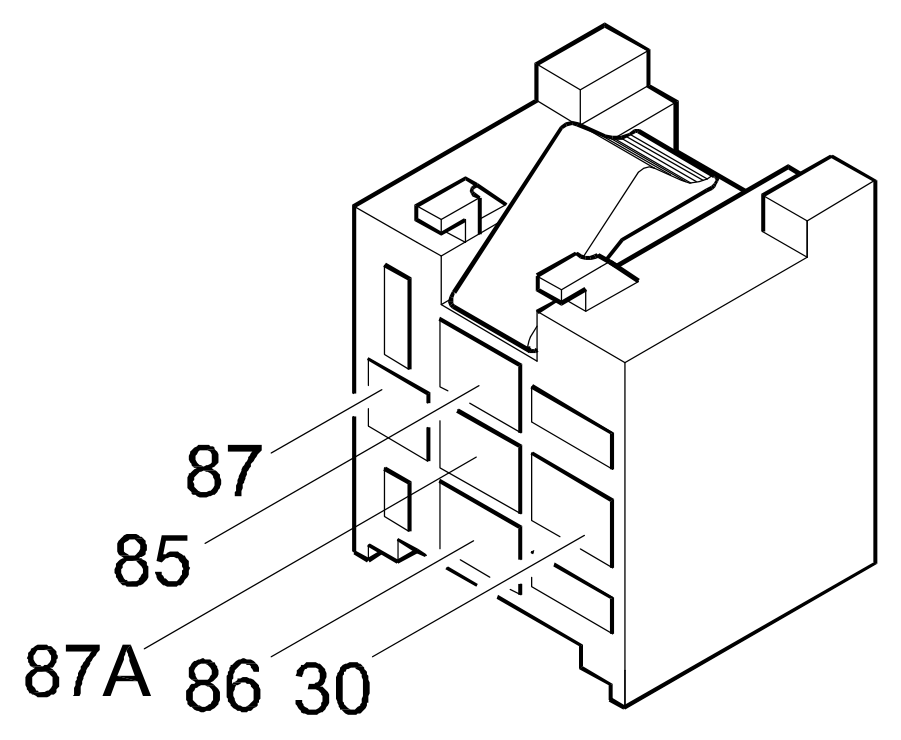

Connector H70B – front harness (white)

Pin	mm²	Colour		To
1	1.0	BN	white/black	M30A pin 4
2	1.0	C	orange	M30A pin 7

Wiring diagrams

• E7015
