L30 EGR solenoid

Make

Alfa Romeo

Model

156 Factory Service Manual

Year

1997–2002

Section

Electromagnets and solenoid valves › L30 EGR solenoid

Connectors and pin-outsL30 EGR solenoid

L30 EGR solenoid

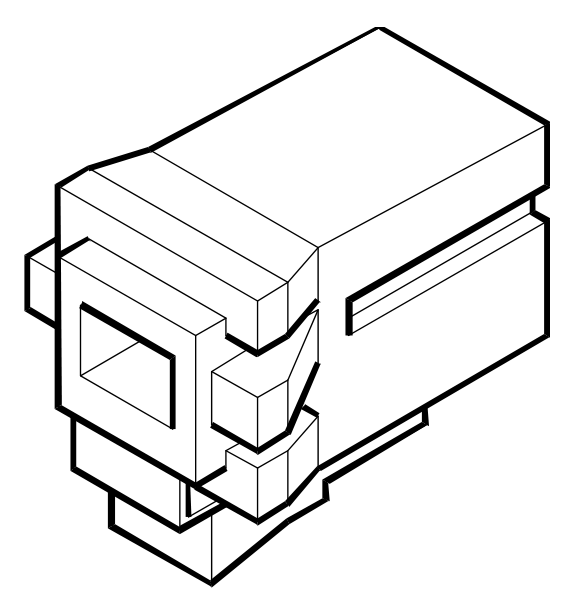

Connector L30 – engine harness (black)

Pin	mm²	Colour		To
1	1.0	BV	white/green	M10C pin 37
2	1.0	BR	white/red	M10C pin 50

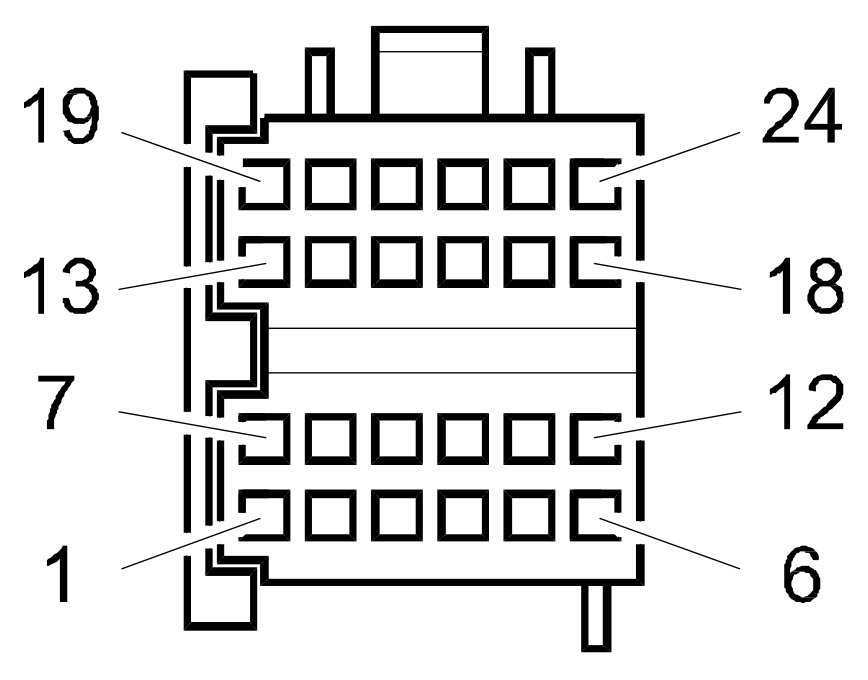

Connector L30 – engine harness (grey) – Euro3

Pin	mm²	Colour		To
1		HR	grey/red	D4 pin 4 K41 pin 2 M15C pin 3 L62 pin 1
5	1.0	BZ	white/violet	D4 pin 3

Wiring diagrams

• E5050
