Windscreen base trim

Operation 7210E22 · External parts

Removal

See Op. 5050B34 Windscreen wiper arm/s complete with blade - r+r (left and right sides)

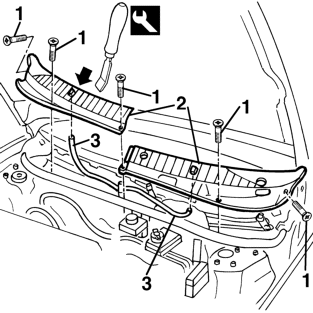

1 Unscrew the bolts

2 Remove the trim pieces from the retainers using the appropriate tool, then move them aside slightly.

Special tool 1.823.014.000 – Blade 2

3 Disconnect the windscreen washer jet pipes and save the trim pieces.

Refitting

Check that the trims are not damaged.

Connect the pipes to the windscreen washer jets.

Refit the trim pieces, fitting them on the retainers.

Tighten the screws.

Check that the windscreen washer jets are working.

See Op. 5050B34 Windscreen wiper arm/s complete with blade - r+r

Check that the windscreen wiper is working properly.
