BodyLuggage compartment trim panels
| Removing and installing the bottom trim panel for the tailgate |
| Special tools and workshop equipment required |
| t
| Disassembly wedge, e.g. -3409- |
|
|
|
| –

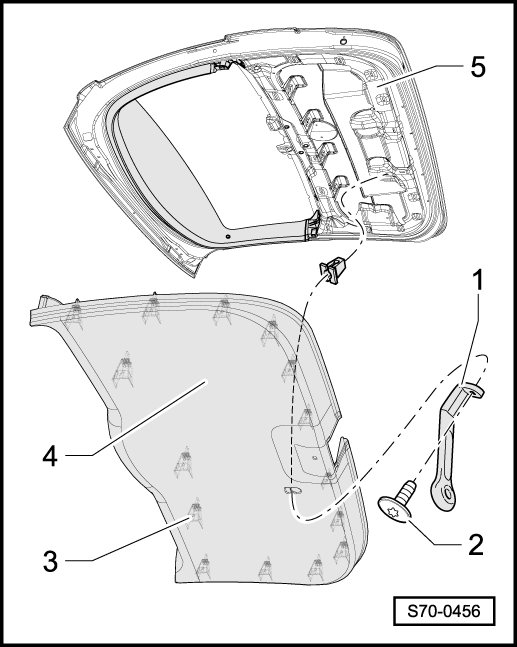

| Remove fixing screw -2- (2 Nm) of the door handle -1-. |
| –
| Unclip the bottom trim panel for the tailgate from the clips -3- using a wedge and remove it from the tailgate -5-. |
| –
| Installation is carried out in the reverse order; pay attention to the following points: |
| –
| Recondition the clips -3- in the bottom trim panel for the tailgate -4-, if necessary replace with new ones. |
|
|
|
