BodySeat belts

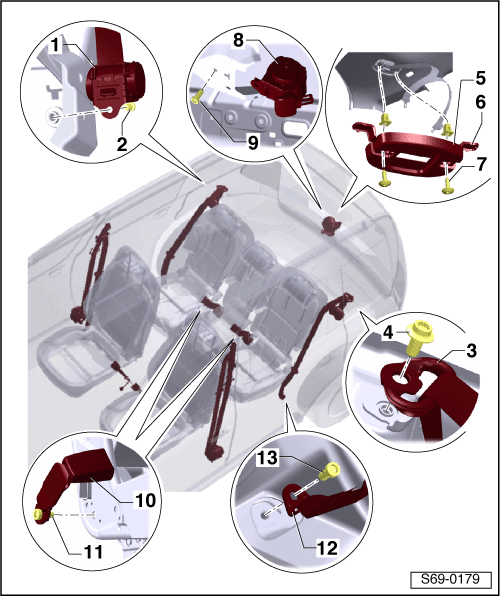

The seat belts at the rear - summary of components

1 -	Inertia reel

Removing:

–	Removing side trim panel in luggage compartment → Chapter.

–	Remove the top deflection fitting -3-.

–	Remove the bottom deflection fitting -12-.

–	Remove screw -2-.

–	Remove the inertia reel.

Installing:

–	Installation is carried out in the reverse order.

2 -

35 Nm

3 -	Top deflection fitting

Removing:

–	Removing side trim panel in luggage compartment → Chapter.

–	Remove screw -4-.

Installing:

–	Installation is carried out in the reverse order.

4 -

35 Nm

5 -	Cover for the middle safety belt

Removing:

–	Unclip cover -6-.

–	Remove screws -7-.

–	Remove the cover for the middle safety belt.

Installing:

–	Installation is carried out in the reverse order.

6 -

Caps

7 -

4 Nm

8 -	Inertia reel for the middle safety belt

Removing:

–	Remove the moulded headliner → Chapter.

–	Remove screw -9-.

–	Remove the middle inertia reel.

Installing:

–	Installation is carried out in the reverse order.

9 -

35 Nm

10 -	Belt buckle

Removing:

–	Fold open rear seat → Chapter.

–	Remove screw -11-.

Installing:

–	Installation is carried out in the reverse order.

11 -

35 Nm

12 -	Deflection fitting below

Removing:

–	Fold open rear seat → Chapter.

–	Partially raise the floor covering under the rear seats.

–	Remove screw -13-.

–	Remove the bottom deflection fitting.

Installing:

–	Installation is carried out in the reverse order.

13 -

35 Nm
