Airbag

Make

Skoda

Model

Yeti

Section

Body Work › Passenger protection › Airbag

BodyAirbag

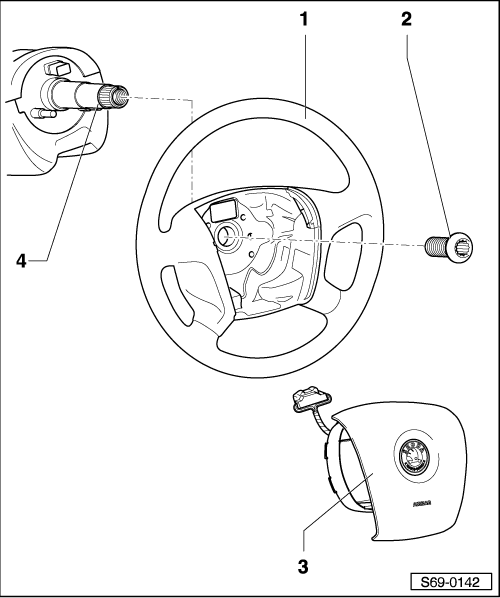

Summary of components of steering wheel

1 -	Steering wheel

Removing:

–	Removing the driver's airbag unit → Chapter.

–	Position the steering wheel to centre position (wheels in straightahead position).

–	Remove screw -2-.

–	Mark the opposite position of the steering wheel and the shaft -4- with a line, as long as this position is not factory-marked.

–	Remove the steering wheel from the steering column.

Installing:

–	Installation is carried out in the reverse order.

2 -

50 Nm

–	Can be used up to five times, then replace

–	Mark with a dot after each mounting.

3 -	Airbag unit

4 -	Steering wheel shaft

02 Body & interior
