Battery box

Make

Skoda

Model

Yeti

Section

Body Work › Interior equipment › Battery box

BodyBattery box

Battery box Removing: –  Remove increased luggage compartment floor (depending upon vehicle equipment) or the luggage compartment-floor covering. –  Remove the tailgate/luggage compartment cover → Chapter. –  Remove side trim panel on the right in the luggage compartment → Chapter.

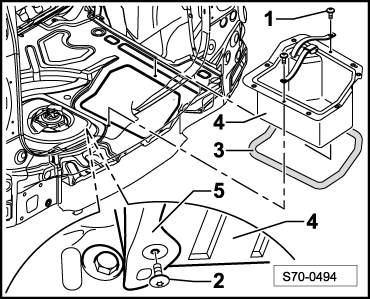

–  Remove screws (Pos. 1) and remove tensioning straps. –  Remove screw (Pos. 2) from heat shield (Pos. 5). –  Separate the box (Pos. 4) from the sealant (Pos. 3) (cut off) and detach from the luggage compartment floor upwards. Installing: –  Clean the adhesive surfaces with the cleaner D 009 401 04 and degrease. –  Apply the primer D 009 200 02 in the adhesive area. –  Apply the PUR adhesive D 172 090 A2 in the adhesive area on the battery box. –  After applying the adhesive all around the box, insert in the opening in the luggage compartment floor. –  Press onto the floor by hand and secure with screws (Pos. 1) with tensioning straps. –  Install screw (Pos. 2).   Note Ensure proper glueing, in order to prevent water leaking into the vehicle.
