Running gearVehicle data sticker and PR numbers
| Vehicle data sticker and PR numbers |
| Different chassis are offered as additional equipment. These chassis are identified by PR numbers. |
| The type of chassis is identified by a chassis PR number on the vehicle data sticker. |
| The vehicle data sticker is located in the Service Schedule and in the luggage compartment (in the spare wheel recess). |
|
|
|

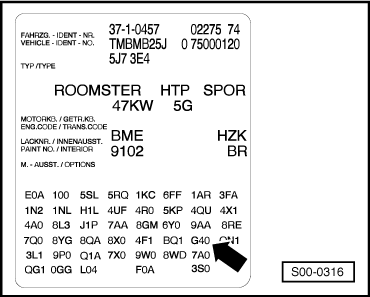

| Example of a vehicle data sticker |
| In this example the vehicle is fitted with a standard damping running gear G40 -arrow-. |
| The PR numbers are required to determine the nominal values for the vehicle. |
|
|
|
