Running gearGeneral notes
| The wheels are driven by the brake test rollers. |
| During the test the gearbox must be in neutral on manual gearboxes or in position N on automatic gearboxes. |
| Follow the instructions provided by the manufacturer of the brake test equipment when performing the test. |
Note | Electronic brake control systems are inoperative when the ignition is switched off. |
|
|
|
| Please note the following if test and measuring equipment has to be used during a test drive: |
WARNING | There is a risk of accident if the driver's attention is distracted or if the test and measuring equipment is not adequately secured during the test drive. |
| There is a risk of injury if the passenger's airbag is triggered during an accident. |
| l
| The operation of test and measuring equipment during a test drive distracts the driver's attention. |
| l
| There is an increased risk of injury if test and measuring equipment is not secured. |
| t
| Move the passenger's seat back as far as possible. |
| t
| Use only vehicle diagnosis, testing and information system -VAS 5051- or vehicle diagnosis and service information system -VAS 5052- or diagnosis system -VAS 5053-. |
| t

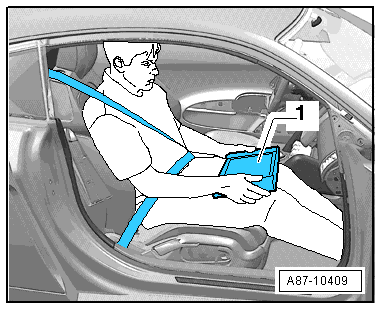

| The test and measuring equipment -1- must rest horizontally on the passenger's thighs as illustrated and must be operated by the passenger. |
|
|
|
|
